Smart Film — Switchable Privacy Film
Smart Film — Switchable Privacy Film
Shipping calculated at checkout.
In stock

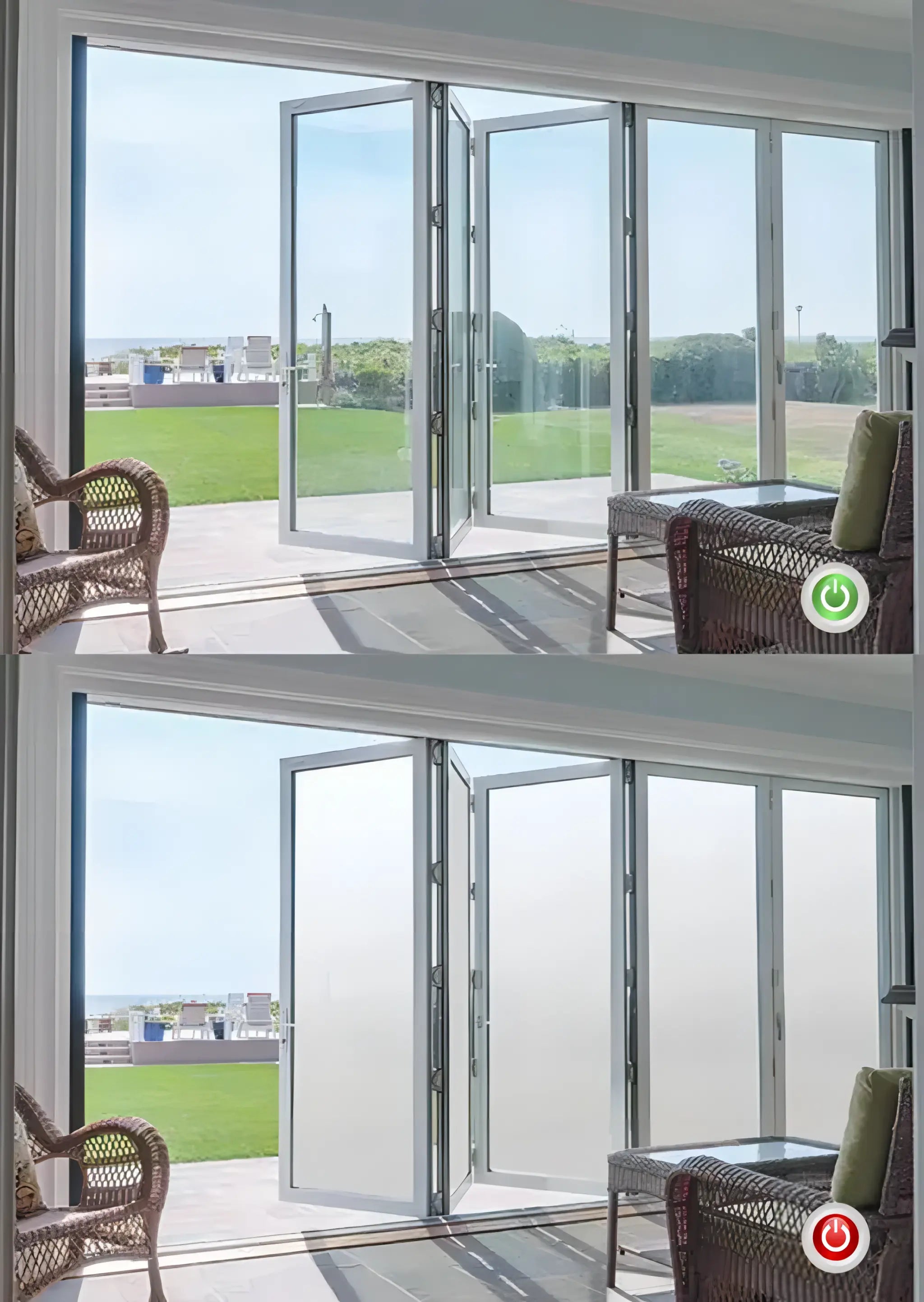

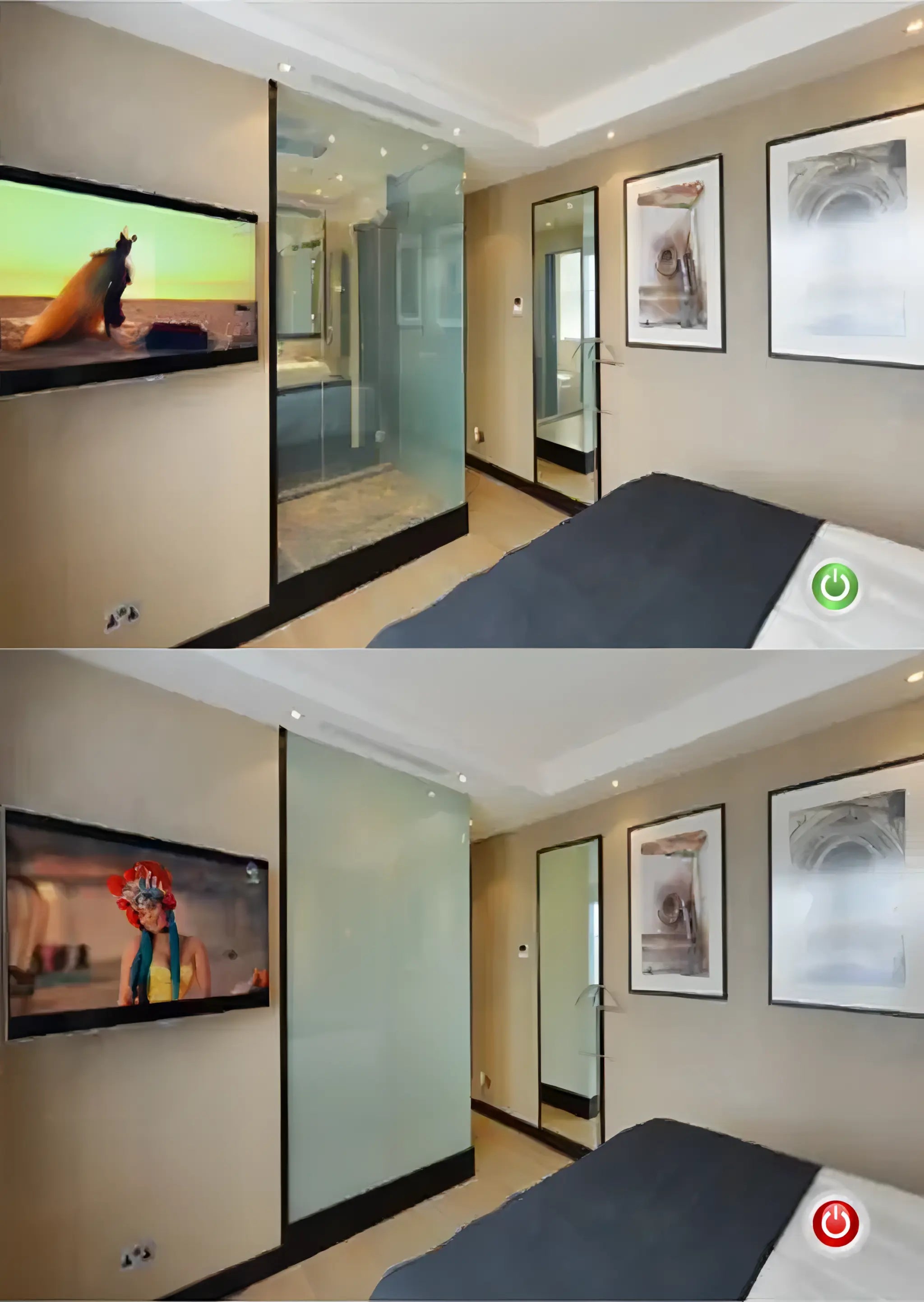

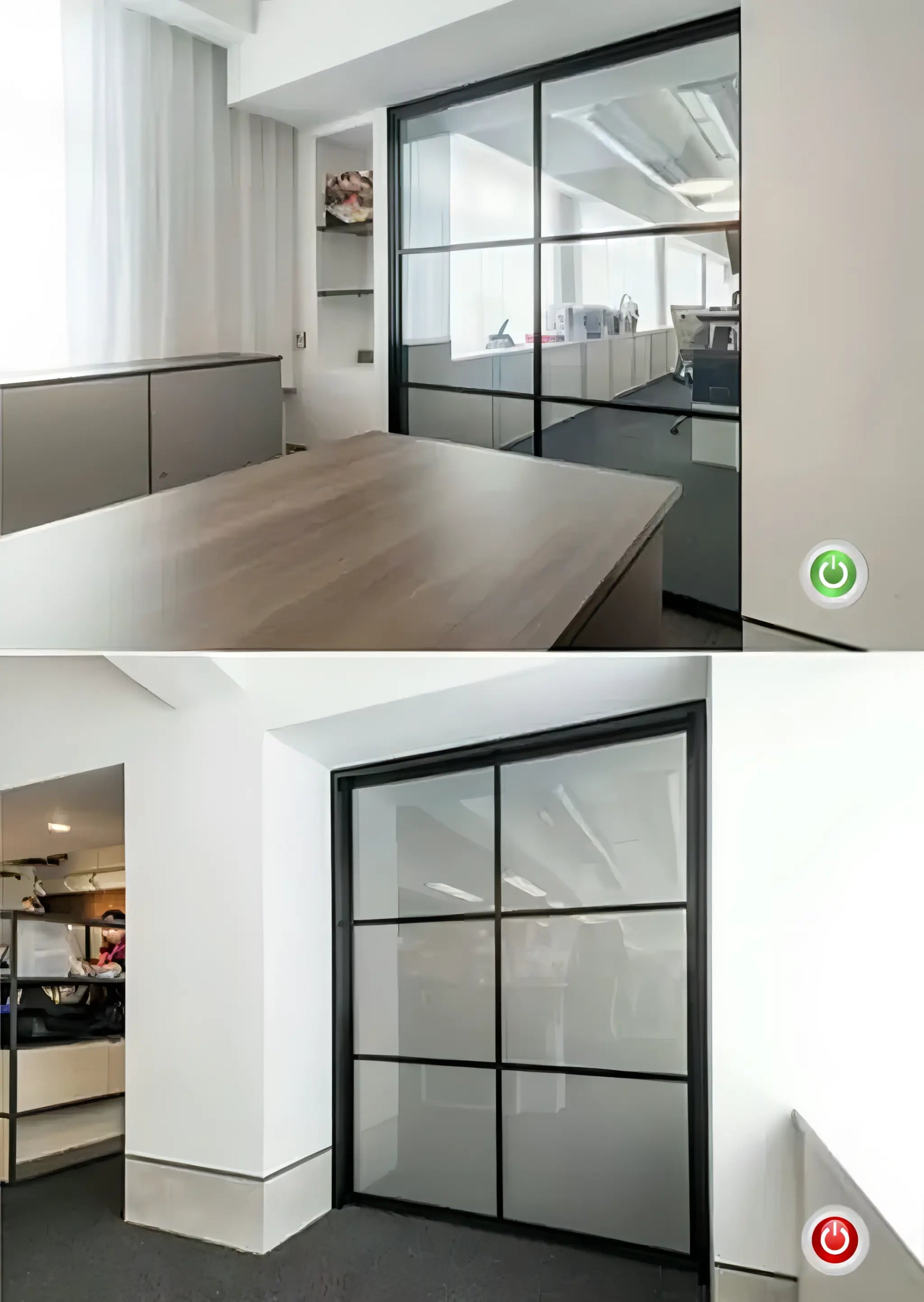

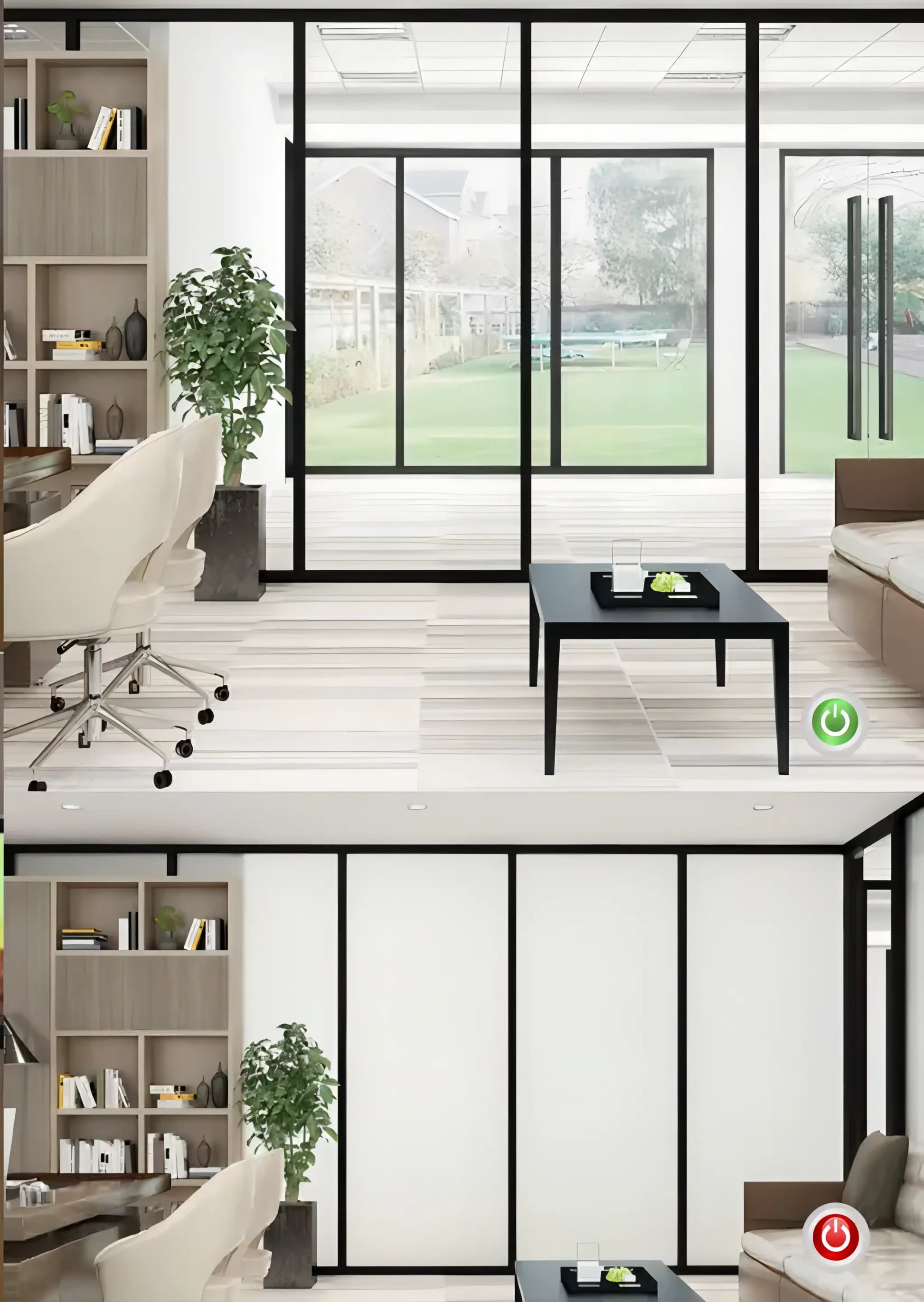

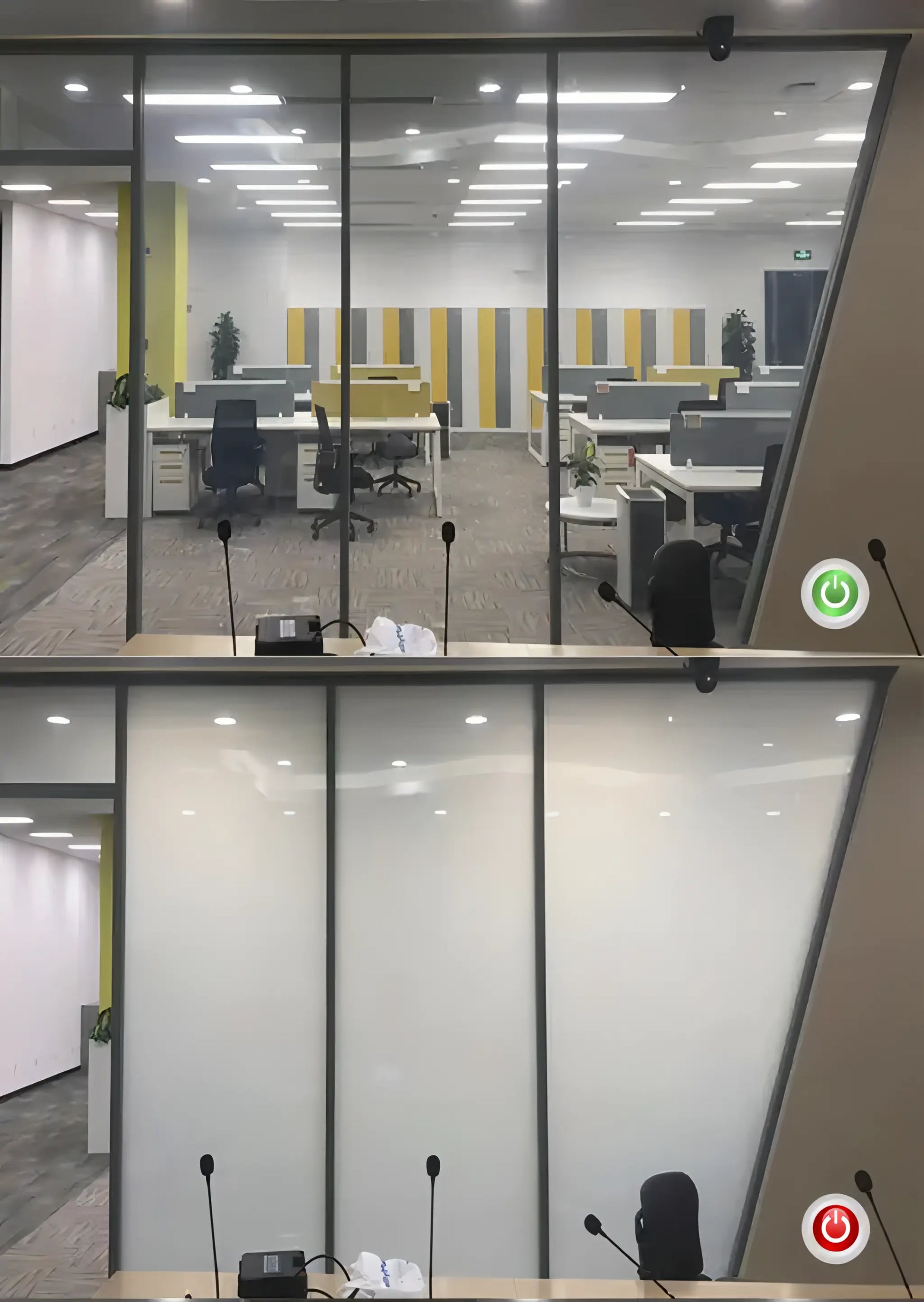

Smart Film is an advanced PDLC (Polymer Dispersed Liquid Crystal) film that transforms ordinary glass into on-demand privacy glass. Flick a switch and the glass changes from frosted to crystal clear in under 30 milliseconds — no curtains, no blinds, no compromise on natural light or clean architectural lines.
How it works
A liquid crystal layer sits between two transparent conductive films. When powered, the crystals align and the film turns transparent. Power off, and the crystals scatter light, making the glass opaque for full privacy — while still letting daylight through. Opaque is the fail-safe state: in a blackout, your privacy is protected automatically.
Two options for any project
Self-Adhesive Smart Film
Applies to the indoor face of your existing glass — offices, meeting rooms, bathrooms, shopfronts and homes without replacing glazing. Widths up to 1.8 m.
Laminated Smart Glass
The film is sealed inside new glass panels for partitions, doors and premium joinery. Fully encapsulated and protected. Widths up to 2 m.
Why choose Smart Film
Instant privacy
Clear to opaque in under a second — wall switch, remote, app, voice, or automatic magnetic door switch.
Projection screen
In opaque mode it doubles as an HD rear-projection screen for boardrooms and retail displays.
UV & heat protection
Blocks over 99% of UV and 98% of infrared — protects furniture from fading and cuts heat load.
Safer glass
The film holds fragments together if glass shatters — added safety for homes and workplaces.
Quieter spaces
Improves sound insulation by up to 20% compared with bare glass.
Built to last
Rated 15+ years and over 2 million switching cycles. CE, FCC and RoHS certified.
Technical specifications
| Visible light transmission | 91% (on) / 88% (off) |
| Haze | ≤2.5% (on) / ≥95% (off) |
| Switching speed | ≤30 ms |
| Viewing angle | ≥170° |
| UV blocked | ≥99% |
| Power consumption | ≤5 W per m² |
| Operating voltage | 48–65 V AC via certified transformer |
| Maximum width | 1.8 m (self-adhesive) / 2 m (laminated) |
| Operating temperature | −30°C to +95°C |
| Lifetime | ≥15 years / ≥2,000,000 switches |
| Certifications | CE, FCC, RoHS |
Applications
Professional measurement & installation
Smart Film is precision-cut to your glass dimensions and installed by experienced installers — the film is designed for a single, perfect application, and correct electrical connection is essential for even switching and longevity. All 230 V wiring is completed by a licensed electrician in line with Australian requirements.
We supply and install in Melbourne and Sydney, and supply pre-cut film with full technical support Australia-wide. Pricing is per square metre.
Downloads
See Smart Film switch live
Visit our Melbourne or Sydney showroom, call 1300 632 166, or send us your glass sizes for a project quote.
